Important to Note Novice headlight "Relay Kits" do not stop the high motor current flowing through the small limit switches mounted at the headlight drive mechanism. 20 amps peak and 10 amps continuous must be supported during headlight motor activation. The limit switches are a weak link and should have been addressed. The proper use of relays require arc suppression devices when used with motors, this was not done in the novice relay kits.
Indicator Function
Installation Diagram
Installation in 1973/1974 Pantera
Installation in 1971/1972 Pantera
INSTALLATION MANUAL HMC ARTICLE HOME HOW TO ORDER RECOMMENDATIONS

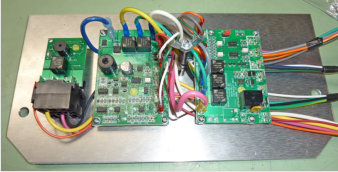

de Tomaso Pantera Headlight/Motor Controller
> Sequences the motor and headlights by activating the motor up, then activate the headlights, and the reverse sequence, headlights off, then activating the motor down. This sequence reduces the operational current by 50% and provides reliable motor operation. > Removes high current from the headlight switch on console, by electronically controlling the headlights, parking lights and side marker lights, this preserves the headlight switch life. > Removes high current from the headlight high / low beam switch on the steering column by electronically controlling the headlight low and high beams, this preserves the high / low beam switch life. > Removes high current from the headlight mechanism LIMIT switches, this preserves the limit switch life. An unique feature of the Pantera Electronics Headlight / Motor Controller. > None of the factory wiring needs to be cut, only disconnected, re- routed and connected to the HMC. >Headlight lift motor dynamic brake accurately stops the headlight housings in a repeatable position. > The HMC does not allow the lights to be on if the ignition key is in the “OFF” position, stopping accidental battery discharge by leaving the lights “ON”. > To improve HID headlight operation there is an on-board setting to change the function of the low / high beam switch. HID headlights have a  warm-up delay before full brightness is attained, this causes a period of low light level  when switching from high to low beam. To compensate for this, the function of the high / low beam switch can be altered to keep the low beam headlights ON after switching to the high beam headlights. > Keep originality by transparent operation through factory Pantera switch and hidden installation. > On-board LED diagnostic indicators for ease of installation. > Compatible with AmeriSport Industries, Pantera Cat Eye Quad Lights
Headlight / Motor Controller Part # HMC-02 Price $180.00 USD Headlight / Motor   Controller with Fog / Driving light control. Part # HMC-03 Price $200.00 USD
The only manufacturer of electronic technology designed exclusively for the de Tomaso Pantera
