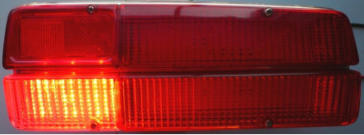

Each of these 24 LED arrays is brighter than the incandescent bulb it replaces.
This image was generated in low level lighting, not complete darkness, to demonstrate the intensity and vivid appearance of the standard lenses with LED arrays. This is an actual image, not retouched.
Design Concept The LED taillight conversions are designed for 1971 through 1974, Pre-L and L-Model Pantera standard taillight housings. The LED arrays consist of high performance industrial grade LED's, as much as 20 times the optical power of the LEDs used in universal bulb base replacement types. The LED arrays meet or exceed the SAE illumination specifications for automotive signal lamps, yet consume only 50% the power of the 1157 incandescent lamps. The original incandescent lamps are removed and the panels are inserted in the reflector pockets of the housing. In this design the light is diffused filling the lens, generating both straight and wide angle light emission. This is superior to the after-market bulb replacement LED's which only emit light from a central location. The LED arrays are designed for each section of the taillight and are available by function and color. The brake sections are always red, the turn signal sections can be red or amber. The amber or red turn signal have scrolling turn signal illumination, sweeping illumination from inboard to outboard part of the lens gives the turn signal a directional appearance.
Note that the LED turn signals require electronic flashers to operate properly, the factory Pantera flasher will not operate properly. Pantera Electronics flasher AF-01 can be used with any combination of incandescent lamps or LEDs.

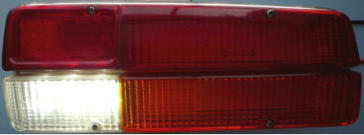

Typical installation of 2 LED arrays, running / brake array and scrolling turn signal array.
de Tomaso Pantera LED taillight brightness display INSTALLATION MANUAL LED installation de Tomaso Pantera, Maserati, Alfa Romeo, Bricklin HOME HOW TO ORDER RECOMMENDATIONS Tailight Lens for LED taillights for Maserati, de tomaso Pantera, Bricklin, Alfa Romeo
 Note:  A complete rear LED conversion requires 2 pairs of LED conversion Brake / Run section and Turn Signal section.
> Brake LED's illuminate 0.20 seconds faster  than incandescent bulbs. (a vehicle moving at a speed of 65 miles per hour will travel a distance of 19 feet in 0.20 seconds) > No filament to burn-out, 24 high brightness LEDs with a minimum life of 50,000 hours. > Scrolling turn signal illumination, sweeping illumination from in-board to out-board part of the lens, not possible with after-market bulb replacement type. > Electronically controlled constant brightness, even at idle engine speed. > Simple wiring, matching color wires to the factory harness. > Plated metal LED reflector replaces, the factory faded silver plastic reflector. > Rusty or inoperative lamp sockets are not used, LED arrays connect directly to the Pantera harness connector. > Modern appearance without distorting the original design. > No mechanical modifications required allowing return to the original incandescent bulbs
 de Tomaso Pantera LED TailLight Conversion
LED Brake/Run Light Part # RBLED-02 Price $140.00 USD per pair LED RED Turn Signal Light Part # RSLED-02 Price $140.00 USD per pair  OR LED AMBER Turn Signal Light Part # ASLED-02 Price $140.00 USD per pair.
Other autos with compatible lenses Maserati Bora (red or amber signal lens) Maserati Ghibli SS (amber signal lens) Maserati Ghibli Spyder Maserati Merak (red signal lens) Maserati Indy Maserati Khamsin (amber signal lens) Alfa Romeo Berlina (amber signal lens) Alfa Romeo Berlina 2000 (amber signal lens) Bricklin SV-1 (red signal lens)
