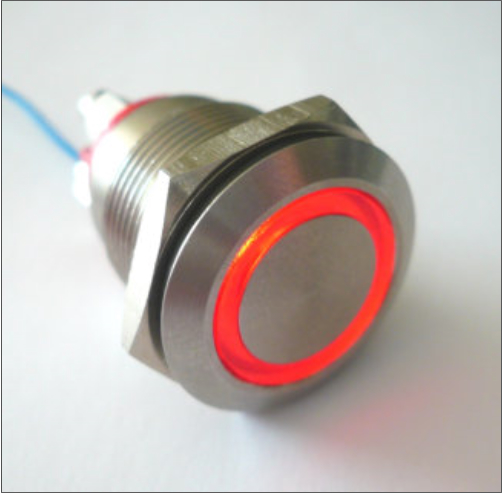

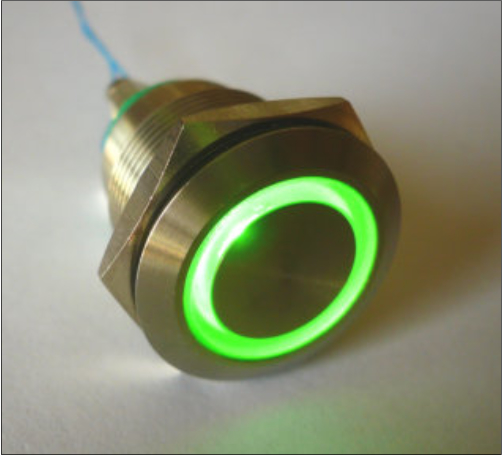

The Push-Button switch shown in the images is not included with the controller, it can be ordered separately. The push-button switch is available in 3 LED "ring" colors, Blue, Red and Green. The push-button switch is made of stainless steel and sealed from moisture. Screw terminals allow easy connection to the Ignition Switch Controller, NO soldering required. The mounting hole required  0.75" diameter. (the dimmer control uses a hole slightly smaller, minor filling of the hole is needed to fit) Any push-button switch can be used with SPST contacts, and separate LED can be installed in another hole.
Replacement Up-grade Terminal Strip This terminal strip connects the ignition switch to the wire harness. It is often damaged from over- current and should be replaced if damaged. Download the installation manual for details.
Blue Push-Button
Red Push-Button
Green Push-Button
HOME HOW TO ORDER RECOMMENDATIONS
de Tomaso Pantera Ignition Switch Controller
> True push-button start function - A single push-button  switch for activating the starter motor. The push-button can be activated as many times as necessary without turning the ignition switch "OFF" and back "ON" in order to operate the starter motor. NOTE: It is NOT necessary to use a separate push-button to take advantage of off-loading the high current form the ignition switch. Note: it is not necessary to use a push button if it is not desired, the electrical advantages of the ISC all function with key operation. > LED lighted push-button - Indicates status: 1) LED light "OFF" - push-button not functional, no action. (Security is "ON" push-button start and flashing LED will not function) 2) LED light "FLASHING" - ignition "ON", push-button is ready to activate starter motor. 3) LED light "ON" - engine running, starter motor activation not possible. > Interlocked function - After engine is operating, the push- button will not allow the starter motor to activate when pressed. > Utilizes (3) 30 amp automotive grade relays with individual arc suppression devices that off-loads high current from ignition switch contacts, preserves expensive ignition switch. > Mimics ignition switch functionality by turning Accessories "OFF" when starter motor is activated. Other Push-button systems leave Accessories "ON" loading battery excessively during starter motor activation. > Connections for the Ignition Switch Controller match the Pantera wire harness with color wire labels. Diagnostic LED indicators are on the controller to ease installation. > LED light can be separate or integrated into the push-button. Integrated LED push button requires only 1 hole or fits in the dash dimmer control hole. Recommended push-button switch with integrated blue, green or red LED light ring available from Pantera-Electronics. > Optional secondary switch for Security function, disables flashing push-button start indicator and starter motor activation. > Still allows operation from the factory ignition switch for the starter motor, unless the Security function is enabled. The Security function is selected at installation and can be changed later if desired. > Compatible with MSD Ignition system and the MSD Tach Adapter
Ignition Switch Controller Part # ISC-01 Price $160.00 USD Push-Button Switch Blue Part # PBS-B Price $38.00 USD Red Part # PBS-R Price $29.00 USD Green Part # PBS-G Price $32.00 USD Replacement/Up-grade Terminal Strip Part # 4TS Price $7.00 USD
