Improve operation of the condenser fan, ramp-up speed and delay shut-off. Delay shut-off cools the condenser for 1 minute after air conditioner compressor is off.
de Tomaso Pantera Air Conditioner Controller
> Start up-timer does not energize the condenser fan or refrigerant compressor for 12 seconds to allow maximum battery power for starting of the engine. > Delay timer keeps the condenser fan running for 1 minute after the A/C thermostat turns off the compressor. This allows additional cooling of the condenser and reduce the number of start and stops during short thermostat cycles. > Ramped start-up speed for the condenser fan to lower start-up current, improves life of the motor and reduces current on wire harness. This high current demand is on the very long wire that extends from the relay box to the A/C condenser fan. > All electronic switching of the high current A/C loads, including the horn switch. Removes electrical arc condition from horn switch contacts. > Key in ignition switch is an audio tone, an improvement to the dated factory buzzer sound. > Compact size, reliable modern electronics, lighter than the factory relay plate assembly, can be mounted with or without the factory box. > Connection tabs are labeled with the wire colors and function matching the wires connected to the relays. > Switch LED indicators for diagnostics, makes installation easy.
Air Conditioner Controller Part # ACC-01 Price $210.00 USD
PRODUCTS
FUSE PANEL IGNITION SWITCH HEADLIGHT / MOTOR RAD FAN CONTROLLER RADIATOR AND FANS AIR CONDITIONING CONSOLE SWITCH INTERFACE GAUGE CONNECT SYSTEM ROCKER SWITCHES WINDOW SWITCHES GEN LIGHT RESISTOR ELECTRIC CALIPER CONTROL DUAL USB CHARGER TACH ADAPTER & RELAYS LED GAUGE LAMP LED DOME & LED FOOTWELL LED SIDE MARKER LAMPS LED DR COURTESY & JAMB LED LICENSE PLATE LAMP LED SIGNAL LIGHTS LED TAILLIGHTS GROUP4 LED LIGHTS LED SIGNAL FLASHER GAUGE, BRAKE SW, GEN RSTR ALTERNATOR KIT ELECTRICAL COMPONENTS WIRE HARNESS
Copyright © 2025
Air Condition Controller fits inside factory Pantera relay panels and relay boxes
an Engineering Company Merging Automotive and Electronic Technologies PANTERA ELECTRONICS INSTALLATION MANUAL CRITICAL CONTROLS LED LIGHTING SUPPORT HOME HOW TO ORDER

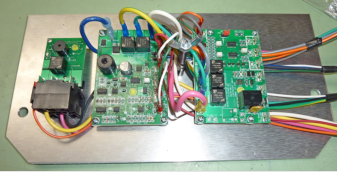

This is the 1971 / 1972 Electronic Relay Plate. The Relay Plate is ONLY the plate with hardware and wiring. The controllers are NOT included with the Relay Plate. To order a Relay Plate for Plug & Play installation the Headlight Motor Controller, A/C Controller and Turn Signal Flasher must be ordered together so the wiring can be completed at Pantera Electronics. A Wire Harness Extension included with the Relay Plate to connect to the fuse panel.
1971 / 72 Electronic Relay Plate ONLY. Includes wire harness, hardware and wiring. Part # ERP-02, Price $327.00 USD
1973 / 74 Electronic Relay Plate ONLY. Includes wire harness, hardware and wiring Part # ERP-04, Price $336.00 USD
1973 / 74
1971 / 72
THIS IS THE PLUG AND PLAY VERSION REPLACING ALL OF THE FACTORY RELAYS
This is the 1973 / 1974 Electronic Relay Plate. The Relay Plate is ONLY the plate with hardware and wiring. The controllers are NOT included with the Relay Plate. To order a Relay Plate for Plug & Play installation the Headlight Motor Controller, A/C Controller and Turn Signal Flasher must be ordered together so the wiring can be completed at Pantera Electronics. A Wire Harness Extension included with the Relay Plate to connect to the fuse panel.
